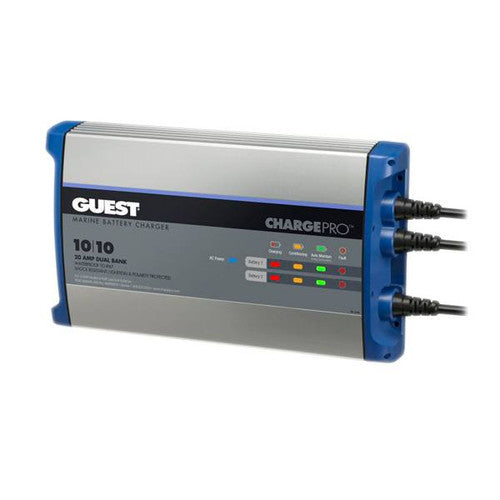

Guest On-Board Battery Charger - 20A - 2-Bank

Guest On-Board Battery Charger - 20A - 2-Bank

Guest On-Board Battery Chargers have been redesigned to provide optimum performance. This charger has dedicated battery charging, sending, and control per bank. Features in-line fuses for maximum DC wire protection and new digital charging technology providing long lasting use and exceptional durability. It is 100% waterproof and shock resistant for all fresh and saltwater applications. With individual sensing and control for every bank, this charger's easy-to-read graphics indicate the status of each battery bank through the charging process.

Features:

• Full Automatic 5-Stage Performance Charging
• All High Frequency, Digital Charging Technology
• 6' AC Power Cord
• Shock Resistant For All Fresh and Saltwater Applications
• Auto-Maintain Energy Saver Mode
• For All 12 Volt Flooded and AGM Lead Acid Batteries
• Up To 40 Percent Lighter
• All Models Are Pre-Wired For Easy Installation
• Microprocessor and Software Control For Precision
• In-Line Fuses For Maximum DC Wire Protection
• 100 Percent Waterproof (IP67)
• Built-In Safety: Reverse Polarity, Over-Current, Over-Voltage, Over-Temperature and Ignition Protection
• Wiring and Battery Fault Detection
• Expanded LED Charge Status Monitor
• 2 Year Warranty

Specifications:

• Dimensions (W x H x L): 7.5" x 2.4" x 12.9"
• Weight: 6.6 lbs
• Input Volts: 90-135 V AC  50/60 Hz
• DC System Voltage: 12/24
• Max Current, During Bulk Charge: 20 A (10A/10A)
• Min Battery Voltage Per Bank: 4.0 V
• Float Voltage: 13.4 V (Auto Maintain Energy Saver Mode)
